PM05: Parking Reservations
This service package manages parking reservations, allowing a traveler to reserve parking as part of the trip planning process. Parking reservations may be part of a trip plan provided by a Transportation Information Center (TIC) based on parking information provided by one or more parking facilities. The request may include preferences or special needs such as disabled parking space, oversize space, electric vehicle charging required, etc. This parking plan is provided to the traveler/driver, which includes the option to make a reservation if available. If the parking reservation is selected by the traveler/driver, then the TIC will negotiate the parking reservation with the parking facility and provide a confirmation to the traveler/driver.
Relevant Regions: Australia, Canada, European Union, and United States
- Enterprise
- Functional
- Physical
- Goals and Objectives
- Needs and Requirements
- Sources
- Security
- Standards
- System Requirements
Enterprise
Development Stage Roles and Relationships
(hide)
Source | Destination | Role/Relationship |
---|---|---|
Light Vehicle OBE Developer | Light Vehicle OBE | Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role. |
Light Vehicle OBE Developer | Transportation Information Center Developer | Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question. |
Parking Management Center Developer | Parking Management Center | Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role. |
Parking Management Center Developer | Transportation Information Center Developer | Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question. |
Personal Information Device Developer | Personal Information Device | Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role. |
Personal Information Device Developer | Transportation Information Center Developer | Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question. |
Transportation Information Center Developer | Light Vehicle OBE Developer | Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question. |
Transportation Information Center Developer | Parking Management Center Developer | Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question. |
Transportation Information Center Developer | Personal Information Device Developer | Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question. |
Transportation Information Center Developer | Transportation Information Center | Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role. |
Transportation Information Center Developer | Traveler Support Equipment Developer | Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question. |
Traveler Support Equipment Developer | Transportation Information Center Developer | Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question. |
Traveler Support Equipment Developer | Traveler Support Equipment | Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role. |
Installation Stage Roles and Relationships
(hide)
Source | Destination | Role/Relationship |
---|---|---|
Light Vehicle OBE Installer | Light Vehicle OBE | Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation. |
Light Vehicle OBE Owner | Light Vehicle OBE Installer | Installation Agreement |
Light Vehicle OBE Owner | Light Vehicle OBE Verifier | Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design. |
Parking Management Center Installer | Parking Management Center | Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation. |
Parking Management Center Owner | Parking Management Center Installer | Installation Agreement |
Parking Management Center Owner | Parking Management Center Verifier | Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design. |
Personal Information Device Installer | Personal Information Device | Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation. |
Personal Information Device Owner | Personal Information Device Installer | Installation Agreement |
Personal Information Device Owner | Personal Information Device Verifier | Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design. |
Transportation Information Center Installer | Transportation Information Center | Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation. |
Transportation Information Center Owner | Transportation Information Center Installer | Installation Agreement |
Transportation Information Center Owner | Transportation Information Center Verifier | Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design. |
Traveler Support Equipment Installer | Traveler Support Equipment | Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation. |
Traveler Support Equipment Owner | Traveler Support Equipment Installer | Installation Agreement |
Traveler Support Equipment Owner | Traveler Support Equipment Verifier | Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design. |
Operations and Maintenance Stage Roles and Relationships
(hide)
Source | Destination | Role/Relationship |
---|---|---|
Light Vehicle OBE Maintainer | Light Vehicle OBE | Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state. |
Light Vehicle OBE Manager | Light Vehicle OBE | Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context. |
Light Vehicle OBE Owner | Light Vehicle OBE Maintainer | System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system. |
Light Vehicle OBE Owner | Light Vehicle OBE Manager | Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity. |
Light Vehicle OBE Owner | Transportation Information Center Maintainer | Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity. |
Light Vehicle OBE Owner | Transportation Information Center Owner | Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data. |
Light Vehicle OBE Owner | Transportation Information Center User | Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage. |
Light Vehicle OBE Supplier | Light Vehicle OBE Owner | Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem. |
Parking Management Center Maintainer | Parking Management Center | Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state. |
Parking Management Center Manager | Parking Management Center | Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context. |
Parking Management Center Manager | Parking Manager | System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system. |
Parking Management Center Owner | Parking Management Center Maintainer | System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system. |
Parking Management Center Owner | Parking Management Center Manager | Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity. |
Parking Management Center Owner | Transportation Information Center Maintainer | Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity. |
Parking Management Center Owner | Transportation Information Center Owner | Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement. |
Parking Management Center Owner | Transportation Information Center User | Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage. |
Parking Management Center Supplier | Parking Management Center Owner | Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem. |
Parking Manager | Parking Management Center | Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel. |
Personal Information Device Maintainer | Personal Information Device | Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state. |
Personal Information Device Manager | Personal Information Device | Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context. |
Personal Information Device Owner | Personal Information Device Maintainer | System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system. |
Personal Information Device Owner | Personal Information Device Manager | Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity. |
Personal Information Device Owner | Transportation Information Center Maintainer | Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity. |
Personal Information Device Owner | Transportation Information Center Owner | Information Provision and Action Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement. This also includes a specification for action that shall, should or may be taken by one party in response to this information. |
Personal Information Device Owner | Transportation Information Center User | Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage. |
Personal Information Device Supplier | Personal Information Device Owner | Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem. |
Transportation Information Center Maintainer | Transportation Information Center | Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state. |
Transportation Information Center Manager | Transportation Information Center | Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context. |
Transportation Information Center Owner | Light Vehicle OBE Maintainer | Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity. |
Transportation Information Center Owner | Light Vehicle OBE Owner | Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement. |
Transportation Information Center Owner | Light Vehicle OBE User | Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage. |
Transportation Information Center Owner | Parking Management Center Maintainer | Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity. |
Transportation Information Center Owner | Parking Management Center Owner | Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement. |
Transportation Information Center Owner | Parking Management Center User | Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage. |
Transportation Information Center Owner | Parking Manager | Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component. |
Transportation Information Center Owner | Personal Information Device Maintainer | Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity. |
Transportation Information Center Owner | Personal Information Device Owner | Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement. |
Transportation Information Center Owner | Personal Information Device User | Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage. |
Transportation Information Center Owner | Transportation Information Center Maintainer | System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system. |
Transportation Information Center Owner | Transportation Information Center Manager | Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity. |
Transportation Information Center Owner | Traveler Support Equipment Maintainer | Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity. |
Transportation Information Center Owner | Traveler Support Equipment Owner | Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement. |
Transportation Information Center Owner | Traveler Support Equipment User | Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage. |
Transportation Information Center Supplier | Transportation Information Center Owner | Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem. |
Traveler Support Equipment Maintainer | Traveler Support Equipment | Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the 'maintains' role typically is delegated authority by the entity with the "Owns" or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state. |
Traveler Support Equipment Manager | Traveler Support Equipment | Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context. |
Traveler Support Equipment Owner | Transportation Information Center Maintainer | Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity. |
Traveler Support Equipment Owner | Transportation Information Center Owner | Information Exchange and Action Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement. This also includes a specification for action that shall, should or may be taken by one party in response to this information. |
Traveler Support Equipment Owner | Transportation Information Center User | Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage. |
Traveler Support Equipment Owner | Traveler Support Equipment Maintainer | System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system. |
Traveler Support Equipment Owner | Traveler Support Equipment Manager | Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity. |
Traveler Support Equipment Supplier | Traveler Support Equipment Owner | Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem. |
Functional
This service package includes the following Functional View PSpecs:
Physical

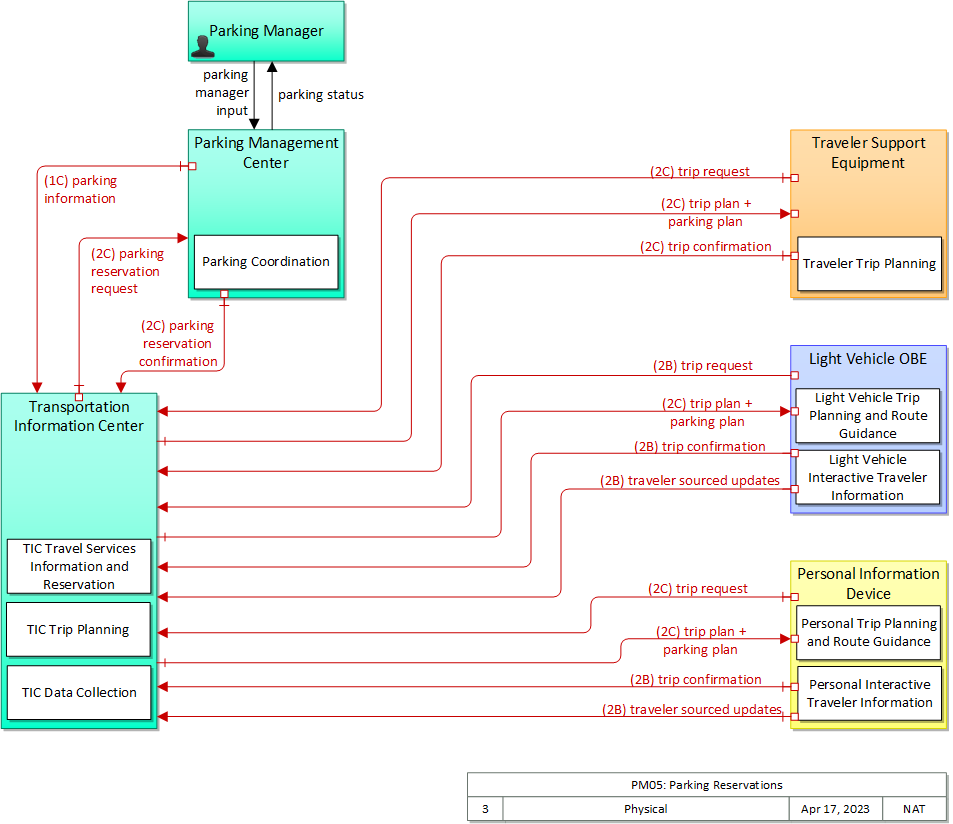

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.SVG Diagram
PNG Diagram


Includes Physical Objects:
Physical Object | Class | Description |
---|---|---|
Light Vehicle OBE | Vehicle | The 'Light Vehicle OBE' includes traveler-oriented capabilities that apply to passenger cars, trucks, and motorcycles that are used for personal travel. The rules vary by jurisdiction, but generally light vehicles are restricted in their weight and the maximum number of passengers they can carry. In ARC-IT, the Light Vehicle OBE represents vehicles that are operated as personal vehicles that are not part of a vehicle fleet and are not used commercially; thus, the choice between the various vehicle subsystems should be based more on how the vehicle is used than how much the vehicle weighs. See also the 'Vehicle' subsystem that includes the general safety and information services that apply to all types of vehicles, including light vehicles. |
Parking Management Center | Center | The 'Parking Management Center' manages one or more parking lots by providing configuration and control of field infrastructure, user account management and interfaces with financial systems to manage payment. This p-object takes the back office portion of the Parking Management System's functionality as it was defined in ARC-IT 8.3 and prior. |
Parking Manager | Center | 'Parking Manager' is the human operator that supports back office operations for one or more parking areas. |
Personal Information Device | Personal | The 'Personal Information Device' provides the capability for travelers to receive formatted traveler information wherever they are. Capabilities include traveler information, trip planning, and route guidance. Frequently a smart phone, the Personal Information Device provides travelers with the capability to receive route planning and other personally focused transportation services from the infrastructure in the field, at home, at work, or while en-route. Personal Information Devices may operate independently or may be linked with vehicle on-board equipment. This subsystem also supports safety related services with the capability to broadcast safety messages and initiate a distress signal or request for help. |
Transportation Information Center | Center | The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service. |
Traveler Support Equipment | Field | 'Traveler Support Equipment' provides access to traveler information at transit stations, transit stops, other fixed sites along travel routes (e.g., rest stops, merchant locations), and major trip generation locations such as special event centers, hotels, office complexes, amusement parks, and theaters. Traveler information access points include kiosks and informational displays supporting varied levels of interaction and information access. At transit stops this might be simple displays providing schedule information and imminent arrival signals. This may be extended to include multi-modal information including traffic conditions and transit schedules to support mode and route selection at major trip generation sites. Personalized route planning and route guidance information can also be provided based on criteria supplied by the traveler. It also supports service enrollment and electronic payment of transit fares. In addition to the traveler information provision, it also enhances security in public areas by supporting traveler activated silent alarms. |
Includes Functional Objects:
Functional Object | Description | Physical Object |
---|---|---|
Light Vehicle Interactive Traveler Information | 'Light Vehicle Interactive Traveler Information' provides drivers with personalized traveler information including traffic and road conditions, transit information, maintenance and construction information, multimodal information, event information, and weather information. The provided information is tailored based on driver requests. Both one-time requests for information and on-going information streams based on a submitted traveler profile and preferences are supported. | Light Vehicle OBE |
Light Vehicle Trip Planning and Route Guidance | 'Light Vehicle Trip Planning and Route Guidance' includes the in-vehicle system that coordinates with a traveler information center to provide a personalized trip plan to the driver. The trip plan is calculated by the Transportation Information Center (TIC) based on preferences and constraints supplied by the driver and provided to the driver for confirmation. Reservations and advanced payment may also be processed to confirm the trip plan. Coordination with the TIC may continue during the trip so that the route plan can be modified to account for new information. Many equipment configurations are possible including in-vehicle systems that provide a basic trip plan to the driver as well as more sophisticated systems that can provide turn by turn guidance to the driver along the route. | Light Vehicle OBE |
Parking Coordination | 'Parking Coordination' supports communication and coordination between equipped parking facilities and also supports regional coordination between parking facilities and traffic management systems. Coordination with traffic management supports local traffic control coordination in and around the parking facility and broader regional coordination. It also shares information with transit management systems and information providers to support multimodal travel planning, including parking reservations capabilities. Information including current parking availability, system status, and operating strategies are shared to enable local parking facility management that supports regional transportation strategies. | Parking Management Center |
Personal Interactive Traveler Information | 'Personal Interactive Traveler Information' provides traffic information, road conditions, transit information, yellow pages (traveler services) information, special event information, and other traveler information that is specifically tailored based on the traveler's request and/or previously submitted traveler profile information. It also supports interactive services that support enrollment, account management, and payments for transportation services. The interactive traveler information capability is provided by personal devices including personal computers and personal portable devices such as smart phones. | Personal Information Device |
Personal Trip Planning and Route Guidance | 'Personal Trip Planning and Route Guidance' provides a personalized trip plan to the traveler. The trip plan is calculated based on preferences and constraints supplied by the traveler and provided to the traveler for confirmation. Coordination may continue during the trip so that the route plan can be modified to account for new information. Many equipment configurations are possible including systems that provide a basic trip plan to the traveler as well as more sophisticated systems that can provide transition by transition guidance to the traveler along a multi-modal route with transfers. Devices represented by this functional object include desktop computers at home, work, or at major trip generation sites, plus personal devices such as tablets and smart phones. | Personal Information Device |
TIC Data Collection | 'TIC Data Collection' collects transportation-related data from other centers, performs data quality checks on the collected data and then consolidates, verifies, and refines the data and makes it available in a consistent format to applications that support operational data sharing between centers and deliver traveler information to end-users. A broad range of data is collected including traffic and road conditions, transit data, emergency information and advisories, weather data, special event information, traveler services, parking, multimodal data, and toll/pricing data. It also shares data with other transportation information centers. | Transportation Information Center |
TIC Travel Services Information and Reservation | 'TIC Travel Services Information' disseminates information about traveler services such as lodging, restaurants, electric vehicle charging, and service stations. Tailored traveler service information is provided on request that meets the constraints and preferences specified by the traveler. This application also supports reservations and advanced payment for traveler services including parking and loading zone use. | Transportation Information Center |
TIC Trip Planning | 'TIC Trip Planning' provides pre-trip and en route trip planning services for travelers. It receives origin, destination, constraints, and preferences and returns trip plan(s) that meet the supplied criteria. Trip plans may be based on current traffic and road conditions, transit schedule information, and other real-time traveler information. Candidate trip plans are multimodal and may include vehicle, transit, and alternate mode segments (e.g., rail, ferry, bicycle routes, and walkways) based on traveler preferences. It also confirms the trip plan for the traveler and supports reservations and advanced payment for portions of the trip. The trip plan includes specific routing information and instructions for each segment of the trip and may also include information and reservations for additional services (e.g., parking) along the route. | Transportation Information Center |
Traveler Trip Planning | 'Traveler Trip Planning' provides a personalized trip plan to the traveler. The trip plan is calculated based on preferences and constraints supplied by the traveler and provided to the traveler for confirmation. It represents kiosks and other fixed public interactive displays that may be used by travelers in public areas. | Traveler Support Equipment |
Includes Information Flows:
Information Flow | Description |
---|---|
parking information | General parking information and status, including current parking availability, parking pricing, and parking space availability information, including features like number and type of electric charging spots. |
parking manager input | Input from the parking manager to query current status and control back office operations for a parking management system. |
parking plan | A tailored parking plan for a particular trip and traveler's vehicle. The plan identifies the parking facility and parking space information for the trip and includes the cost for parking. |
parking reservation confirmation | Confirmation for parking reservation. |
parking reservation request | Reservation request for parking including special requests and needs such as disabled space access, electric vehicle charging, etc. |
parking status | Presentation of information to the parking manager including operational status and transaction reports. This includes aggregated status for parking areas as well as status for back office operations. |
traveler sourced updates | Traveler posts on traffic and road conditions, parking availability, transit services, traveler services, shelter information, hazards, debris, obstacles, and other real-time crowd-sourced data that may be shared with other travelers. |
trip confirmation | Acknowledgement by the driver/traveler of acceptance of a trip plan with associated personal and payment information required to confirm reservations. Conversely, this flow may also reject the proposed trip plan. Confirmations include the selected route and subsequent trip confirmation messages will be issued for route changes. |
trip plan | A travel itinerary covering single or multimodal travel. The itinerary identifies a route and associated traveler information and instructions identifying recommended trip modes (including indoor and outdoor wayfinding) and transfer information, ride sharing options, and transit and parking reservation information. This flow also includes intermediate information that is provided as the trip plan is interactively created, including identification of alternatives, requests for additional information as well as amenities along the trip. |
trip request | Request for trip planning services that identifies the trip origin, destination(s), timing, preferences, and constraints. The request may also include the requestor's location or a request for transit and parking reservations, electric charging station access, and ridesharing options associated with the trip. The trip request also covers requests to revise a previously planned trip and interim updates that are provided as the trip is interactively planned. |
Goals and Objectives
Associated Planning Factors and Goals
Planning Factor | Goal |
---|---|
D. Increase the accessibility and mobility of people and for freight; | Reduce congestion |
F. Enhance the integration and connectivity of the transportation system, across and between modes, for people and freight; | Enhance integration and connectivity |
G. Promote efficient system management and operation; | Improve efficiency |
Associated Objective Categories
Objective Category |
---|
Special Event Management: Parking Management |
Travel Demand Management: Parking Management |
Associated Objectives and Performance Measures

Needs and Requirements
Need | Functional Object | Requirement | ||
---|---|---|---|---|
01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. | Light Vehicle Interactive Traveler Information | 15 | The vehicle shall receive information on available parking including available spaces with associated information about parking restrictions and location for each available space. |
Light Vehicle Trip Planning and Route Guidance | 05 | The vehicle shall provide a mechanism for its user to create/modify a trip plan including selection of mode, route and parking. | ||
Parking Coordination | 05 | The parking element shall distribute parking lot information upon request to traveler information providers to support travel planning. | ||
06 | The parking element shall support requests for parking reservations. | |||
Personal Interactive Traveler Information | 08 | The personal traveler interface shall support payment for services, such as confirmed trip plans, tolls, transit fares, parking lot charges, map updates, and advanced payment for tolls. | ||
10 | The personal traveler interface shall base requests from the traveler on the traveler's current location or a specific location identified by the traveler, and filter the provided information accordingly. | |||
11 | The personal traveler interface shall support traveler input in audio or manual form. | |||
12 | The personal traveler interface shall present interactive information to the traveler in audible or visual forms consistent with a personal device, and suitable for travelers with hearing and vision physical disabilities. | |||
13 | The personal traveler interface shall store frequently requested or used data, including the traveler's identity, home and work locations, etc. | |||
17 | The personal traveler interface shall receive traveler information including traffic and road conditions, advisories, incidents, payment information, transit services, parking information, weather information, and other travel-related data updates and confirmations. | |||
26 | The personal device shall receive information on available parking including available spaces with associated information about parking restrictions and location for each available space. | |||
Personal Trip Planning and Route Guidance | 09 | The personal traveler interface shall provide a mechanism for its user to create/modify a trip plan including selection of mode, route and parking. | ||
TIC Data Collection | 05 | The center shall collect, process, and store parking information, including location, availability, and fees. | ||
TIC Travel Services Information and Reservation | 01 | The center shall disseminate yellow pages information (such as lodging, restaurants, theaters, bicycle facilities, and other tourist activities) to travelers upon request. | ||
02 | The center shall support yellow pages service information and reservation requests from a vehicle. | |||
10 | The center shall support yellow pages service information and reservation requests from a kiosk. | |||
11 | The center shall support yellow pages service information and reservation requests from a personal device. | |||
TIC Trip Planning | 01 | The center shall provide the capability to provide specific pre-trip and en route directions to travelers (and drivers), including costs, arrival times, and transfer points. | ||
13 | The center shall provide the capability for the traveler to confirm the proposed trip plan. | |||
15 | The center shall generate route plans to account for parking availability. | |||
Traveler Trip Planning | 08 | The traveler support equipment shall provide a mechanism for its user to create/modify a trip plan including selection of mode, route and parking. | ||
09 | The traveler support equipment shall receive information on available parking including available spaces with associated information about parking restrictions and location for each available space. |
Security
In order to participate in this service package, each physical object should meet or exceed the following security levels.
Physical Object Security | ||||
---|---|---|---|---|
Physical Object | Confidentiality | Integrity | Availability | Security Class |
Light Vehicle OBE | Moderate | Moderate | Moderate | Class 2 |
Parking Management Center | Moderate | Moderate | Moderate | Class 2 |
Personal Information Device | Moderate | Moderate | Moderate | Class 2 |
Transportation Information Center | Moderate | Moderate | Moderate | Class 2 |
Traveler Support Equipment | Moderate | Moderate | Moderate | Class 2 |
In order to participate in this service package, each information flow triple should meet or exceed the following security levels.
Information Flow Security | |||||
---|---|---|---|---|---|
Source | Destination | Information Flow | Confidentiality | Integrity | Availability |
Basis | Basis | Basis | |||
Light Vehicle OBE | Transportation Information Center | traveler sourced updates | Moderate | Moderate | Low |
This is likely to include the traveler location and may include traveler identity as well. This PII could be used by an attacker to the detriment of the traveler. | Quality of social media inputs may be highly variable, but no publicly distributable data should be exchanged without some protection over its transmission. | While a widespread and widely used dissemination channel, social media tends to be cluttered with lots of other information, so it is not a primary dissemination channel for this information. | |||
Light Vehicle OBE | Transportation Information Center | trip confirmation | Moderate | Moderate | Moderate |
Predictive of traveler location, includes traveler identity as well as payment information. A third party with hostile intent toward the traveler could use this information against the traveler. | If this data is corrupted, the TIC may not understand the traveler's intent or may not receive correct payment information and not properly serve the traveler. | This acknowledgement is part of the real-time feedback for car-pooling services. If this doesn't work, the car-pooling service doesn't work. | |||
Light Vehicle OBE | Transportation Information Center | trip request | Moderate | Moderate | Low |
Predictive of traveler location, includes traveler identity. A third party with hostile intent toward the traveler could use this information against the traveler. | If this data is corrupted, the TIC may not understand the traveler's intent and not properly serve the traveler. | This flow initiates an carp-pooling service. If it doesn't work, the car-pooling service doesn't work. | |||
Parking Management Center | Parking Manager | parking status | Moderate | High | High |
Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available. | Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system. | Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system. | |||
Parking Management Center | Transportation Information Center | parking information | Moderate | Moderate | Moderate |
Does not include PII, but does include usage information for a managed facility that implies a number of vehicles. While this is observable information, it could be considered competitive, and regardless is accessible without being physically present, which is its own barrier. | Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken. | Most likely not a frequently updated flow. Typically MODERATE for applications with a high degree of commercial vehicle parking, but could be LOW otherwise. | |||
Parking Management Center | Transportation Information Center | parking reservation confirmation | Moderate | Moderate | Moderate |
Might not have direct PII, but may include a pseudonym. | If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor. | If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor. | |||
Parking Manager | Parking Management Center | parking manager input | Moderate | High | High |
Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available. | Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system. | Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system. | |||
Personal Information Device | Transportation Information Center | traveler sourced updates | Moderate | Moderate | Low |
This is likely to include the traveler location and may include traveler identity as well. This PII could be used by an attacker to the detriment of the traveler. | If this information is not correct the end user of the TIC will likely find othe avenues for obtaining this information. | If this interface is not available the traveler will likely find other means to acquire the necessary information. | |||
Personal Information Device | Transportation Information Center | trip confirmation | Moderate | Moderate | Moderate |
Predictive of traveler location, includes traveler identity as well as payment information. A third party with hostile intent toward the traveler could use this information against the traveler. | If this data is corrupted, the TIC may not understand the traveler's intent or may not receive correct payment information and not properly serve the traveler. | This acknowledgement is part of the real-time feedback for car-pooling services. If this doesn't work, the car-pooling service doesn't work. | |||
Personal Information Device | Transportation Information Center | trip request | Moderate | Moderate | Moderate |
Predictive of traveler location, includes traveler identity. A third party with hostile intent toward the traveler could use this information against the traveler. | If this data is corrupted, the TIC may not understand the traveler's intent and not properly serve the traveler. | This flow initiates an carp-pooling service. If it doesn't work, the car-pooling service doesn't work. | |||
Transportation Information Center | Light Vehicle OBE | parking plan | Moderate | Moderate | Moderate |
Contains information dedicated to a particular user, so should be obfuscated to prevent determination of PII. May also incude payment information. | The parking plan will affect the user's interaction with the parking system, and notably can include payment information. If any of this is incorrect, the traveler will be adversely affected. If this is hacked, a traveler may be able to use the system for free. | This flow is critical to organized and pre-planned parking services. If the flow doesn't work, the application doesn't work. | |||
Transportation Information Center | Light Vehicle OBE | trip plan | Moderate | Moderate | Moderate |
Contains information dedicated to a particular user, so should be obfuscated to prevent determination of PII. May also incude payment information. | The trip plan will affect the user's interaction with the transit system, and notably can include payment information. If any of this is incorrect, the traveler will be adversely affected. If this is hacked, a traveler may be able to use the system for free. | This flow is part of a car-pooling service. If it doesn't work, the car-pooling service doesn't work. | |||
Transportation Information Center | Parking Management Center | parking reservation request | Moderate | Moderate | Moderate |
Might not have direct PII, but may include a pseudonym. | If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor. | If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor. | |||
Transportation Information Center | Personal Information Device | parking plan | Moderate | Moderate | Moderate |
Contains information dedicated to a particular user, so should be obfuscated to prevent determination of PII. May also incude payment information. | The parking plan will affect the user's interaction with the parking system, and notably can include payment information. If any of this is incorrect, the traveler will be adversely affected. If this is hacked, a traveler may be able to use the system for free. | This flow is critical to organized and pre-planned parking services. If the flow doesn't work, the application doesn't work. | |||
Transportation Information Center | Personal Information Device | trip plan | Moderate | Moderate | Moderate |
Contains information dedicated to a particular user, so should be obfuscated to prevent determination of PII. May also incude payment information. | The trip plan will affect the user's interaction with the transit system, and notably can include payment information. If any of this is incorrect, the traveler will be adversely affected. If this is hacked, a traveler may be able to use the system for free. | This flow is part of a car-pooling service. If it doesn't work, the car-pooling service doesn't work. | |||
Transportation Information Center | Traveler Support Equipment | parking plan | Moderate | Moderate | Moderate |
Contains information dedicated to a particular user, so should be obfuscated to prevent determination of PII. May also incude payment information. | The parking plan will affect the user's interaction with the parking system, and notably can include payment information. If any of this is incorrect, the traveler will be adversely affected. If this is hacked, a traveler may be able to use the system for free. | This flow is critical to organized and pre-planned parking services. If the flow doesn't work, the application doesn't work. | |||
Transportation Information Center | Traveler Support Equipment | trip plan | Moderate | Moderate | Moderate |
Contains information dedicated to a particular user, so should be obfuscated to prevent determination of PII. May also incude payment information. | The trip plan will affect the user's interaction with the transit system, and notably can include payment information. If any of this is incorrect, the traveler will be adversely affected. If this is hacked, a traveler may be able to use the system for free. | This flow is part of a car-pooling service. If it doesn't work, the car-pooling service doesn't work. | |||
Traveler Support Equipment | Transportation Information Center | trip confirmation | Moderate | Moderate | Moderate |
Predictive of traveler location, includes traveler identity as well as payment information. A third party with hostile intent toward the traveler could use this information against the traveler. | If this data is corrupted, the TIC may not understand the traveler's intent or may not receive correct payment information and not properly serve the traveler. | This acknowledgement is part of the real-time feedback for car-pooling services. If this doesn't work, the car-pooling service doesn't work. | |||
Traveler Support Equipment | Transportation Information Center | trip request | Moderate | Moderate | Low |
Predictive of traveler location, includes traveler identity. A third party with hostile intent toward the traveler could use this information against the traveler. | If this data is corrupted, the TIC may not understand the traveler's intent and not properly serve the traveler. | This flow initiates an carp-pooling service. If it doesn't work, the car-pooling service doesn't work. |
Standards
Currently, there are no standards associated with the physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages.
System Requirements
System Requirement | Need | ||
---|---|---|---|
001 | The system shall distribute parking lot information upon request to traveler information providers to support travel planning. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
002 | The system shall support requests for parking reservations. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
003 | The system shall collect, process, and store parking information, including location, availability, and fees. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
004 | The system shall disseminate yellow pages information (such as lodging, restaurants, theaters, bicycle facilities, and other tourist activities) to travelers upon request. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
005 | The system shall support yellow pages service information and reservation requests from a vehicle. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
006 | The system shall support yellow pages service information and reservation requests from a kiosk. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
007 | The system shall support yellow pages service information and reservation requests from a personal device. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
008 | The system shall provide the capability to provide specific pre-trip and en route directions to travelers (and drivers), including costs, arrival times, and transfer points. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
009 | The system shall provide the capability for the traveler to confirm the proposed trip plan. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
010 | The system shall generate route plans to account for parking availability. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
011 | The system shall support payment for services, such as confirmed trip plans, tolls, transit fares, parking lot charges, map updates, and advanced payment for tolls. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
012 | The system shall base requests from the traveler on the traveler's current location or a specific location identified by the traveler, and filter the provided information accordingly. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
013 | The system shall present interactive information to the traveler in audible or visual forms consistent with a personal device, and suitable for travelers with hearing and vision physical disabilities. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
014 | The system shall store frequently requested or used data, including the traveler's identity, home and work locations, etc. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
015 | The system shall receive traveler information including traffic and road conditions, advisories, incidents, payment information, transit services, parking information, weather information, and other travel-related data updates and confirmations. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
016 | The system shall provide a mechanism for its user to create/modify a trip plan including selection of mode, route and parking. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
017 | The system shall receive information on available parking including available spaces with associated information about parking restrictions and location for each available space. | 01 | Travelers need to be able to plan for parking in conjunction with their overall trip planning. |
