Map Update System

Overview

The 'Map Update System' represents a provider of map databases used to support ITS services. It supports the provision of the map data that are used directly by vehicles (e.g., roadway and intersection geometry data sets), travelers (e.g., navigable maps used for route guidance and display maps used at traveler information points), system operators (e.g., map data used by Traffic Operators to monitor and manage the road network, and map data used by Fleet Managers to manage a vehicle fleet). It may represent a third-party provider or an internal organization that produces map data for agency use. In the latter case, the 'Map Update System' is typically included as part of the center (e.g., a Traffic Management Center) of the infrastructure owner/operator that manages map data. Products may include simple display maps, map data sets that define detailed road network topology and geometry, or full geographic information system databases that are used to support planning and operations.



This physical object is included in the following Service Packages:

Functionality

Functional Object
Map Management

Triples

Source Flow Destination
Center map update notification Map Update System
Commercial Vehicle Administration Center route restrictions Map Update System
Connected Vehicle Roadside Equipment vehicle location data for mapping Map Update System
Maint and Constr Management Center current infrastructure restrictions Map Update System
MAP GIS Operator map operator input Map Update System
Map Update System intersection geometry Center
Map Update System map updates Center
Map Update System intersection geometry Connected Vehicle Roadside Equipment
Map Update System map updates Connected Vehicle Roadside Equipment
Map Update System parking facility geometry Connected Vehicle Roadside Equipment
Map Update System roadway geometry Connected Vehicle Roadside Equipment
Map Update System map operator updates MAP GIS Operator
Map Update System map update coordination Other Map Update Systems
Map Update System parking facility geometry Parking Area Equipment
Map Update System intersection geometry Personal Information Device
Map Update System map updates Personal Information Device
Map Update System map updates Traveler Support Equipment
Map Update System intersection geometry Vehicle OBE
Map Update System map updates Vehicle OBE
Map Update System parking facility geometry Vehicle OBE
Map Update System roadway geometry Vehicle OBE
Other Map Update Systems map update coordination Map Update System
Parking Area Equipment parking facility geometry Map Update System
Traffic Regulatory Authority Center traffic-related regulations Map Update System
Vehicle OBE vehicle location and motion for mapping Map Update System

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 3 Moderate High Moderate Map Management
Class 3 Low High Moderate Traffic Code Dissemination



Interfaces Diagram

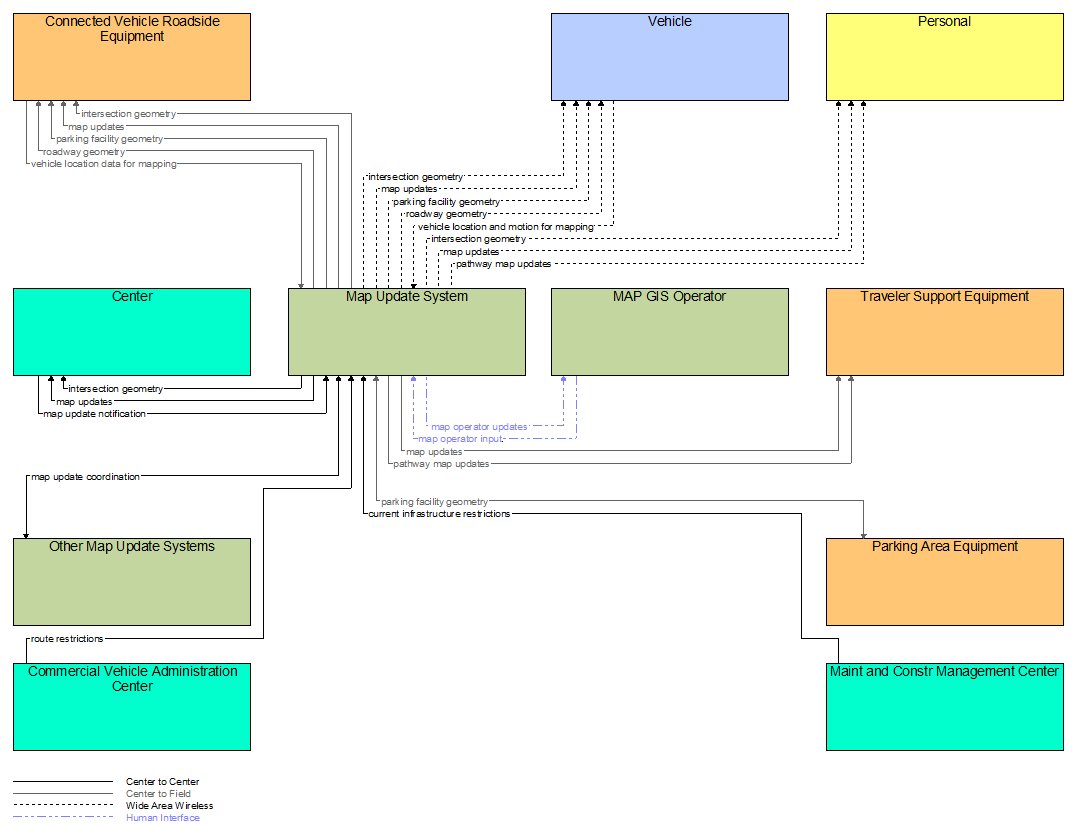

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
